9080237 Numerically controlled machining centres ROVER A SMART - Centralized manual lubrication

system- PC-based numerical control with Windows - EC-UKCA Safety devices - Industry 4.0 -

Integration with factory systems

1 9080887 Numerically controlled machining centre ROVER A SMART 1632Working fields : X = 3280 mm; Y =

from 1580 to 1660 mm, according to working conditionsZ = 200 mm - 5 axes unit and boring

unit, with modules H=74 mmZ = 245 mm - 5 axes unit and boring unit, with modules H=29

mmLoadable piece: Y = 1900 mm Length of the working tables (not included) = 1280 mmVacuum

system - 2 areasAuxiliary vacuum system - 2 areasRM850 remote keyboard

1 7800151 Configuration 2Compatible with the Revolver toolchanger with 16 places and the side Rack

toolchanger with 12 places.The toolchangers can also be retrofitted.

1 7300725 6 ATS panel supports - 18 sliding bases

6 7350943 Stop of the back line with a stroke of 115 mm and extension of 25 mm

6 7350957 Stop of the middle line, positioned at 1190 mm, with a stroke of 140 mm* Quantity depending

from the total selected working tables

1 7350191 4 Side stops with a stroke of 140 mm (2 Lh + 2 Rh) inclusive of the pneumatic system.

16 7350960 Sensor for the detection of lowered stops

1 7350946 4 lifting bar supports for loading ease - H=74mm modules.

1 7300804 250 m3/h rotary claws vacuum pump

12 7350990 Vacuum module - Size 132x146 - H74mm, with high friction surface and integrated sealing

gasket of the vacuum.It can be rotated through 360 degrees, with a step of 15 degrees

6 7350992 Vacuum module - Size 132x75 - H74mm, with high friction surface, integrated sealing gasket of

the vacuum and prearrangement for needles. It can be rotated through 360 degree, with a step

of 15 degree

6 7350993 Vacuum module - Size 132x54 - H74mm, with high friction surface, integrated sealing gasket of

the vacuum and prearrangement for needles. It c

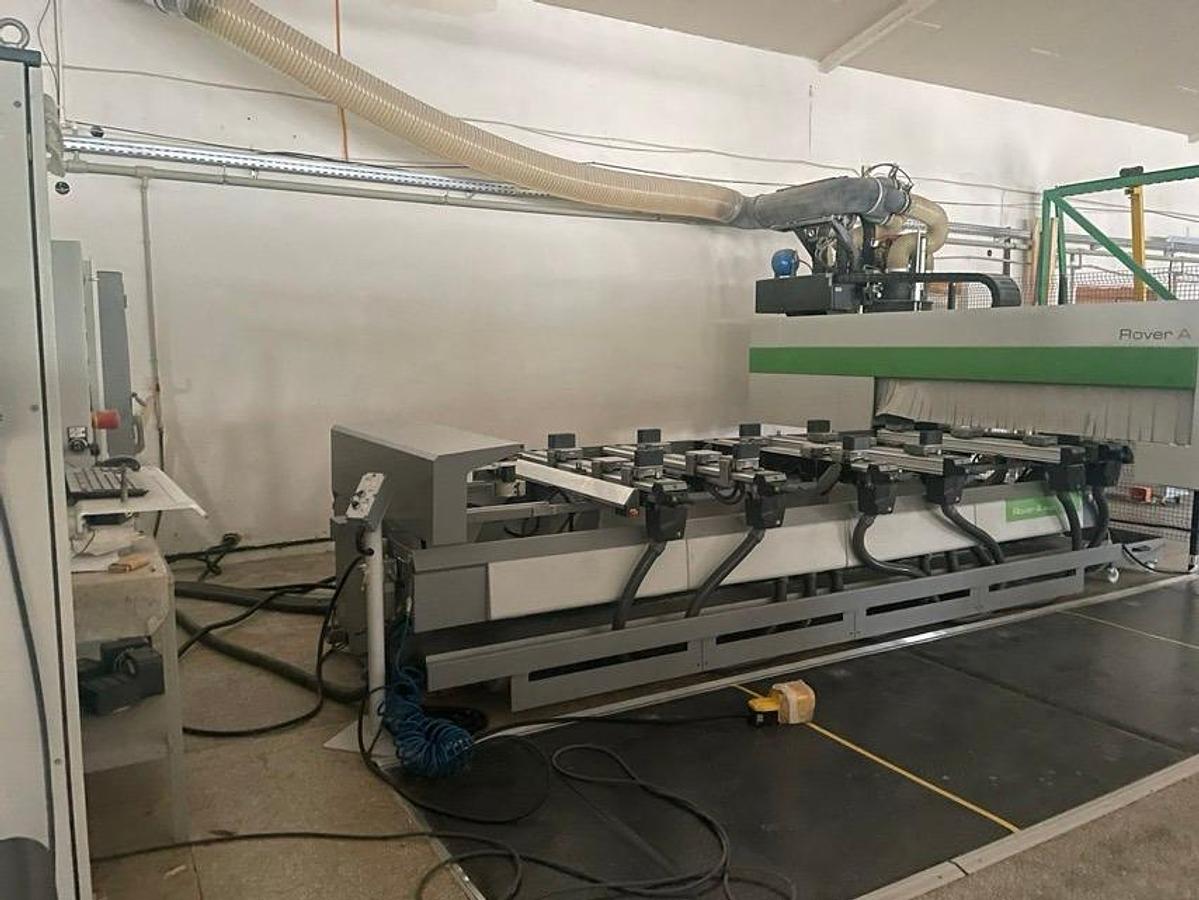

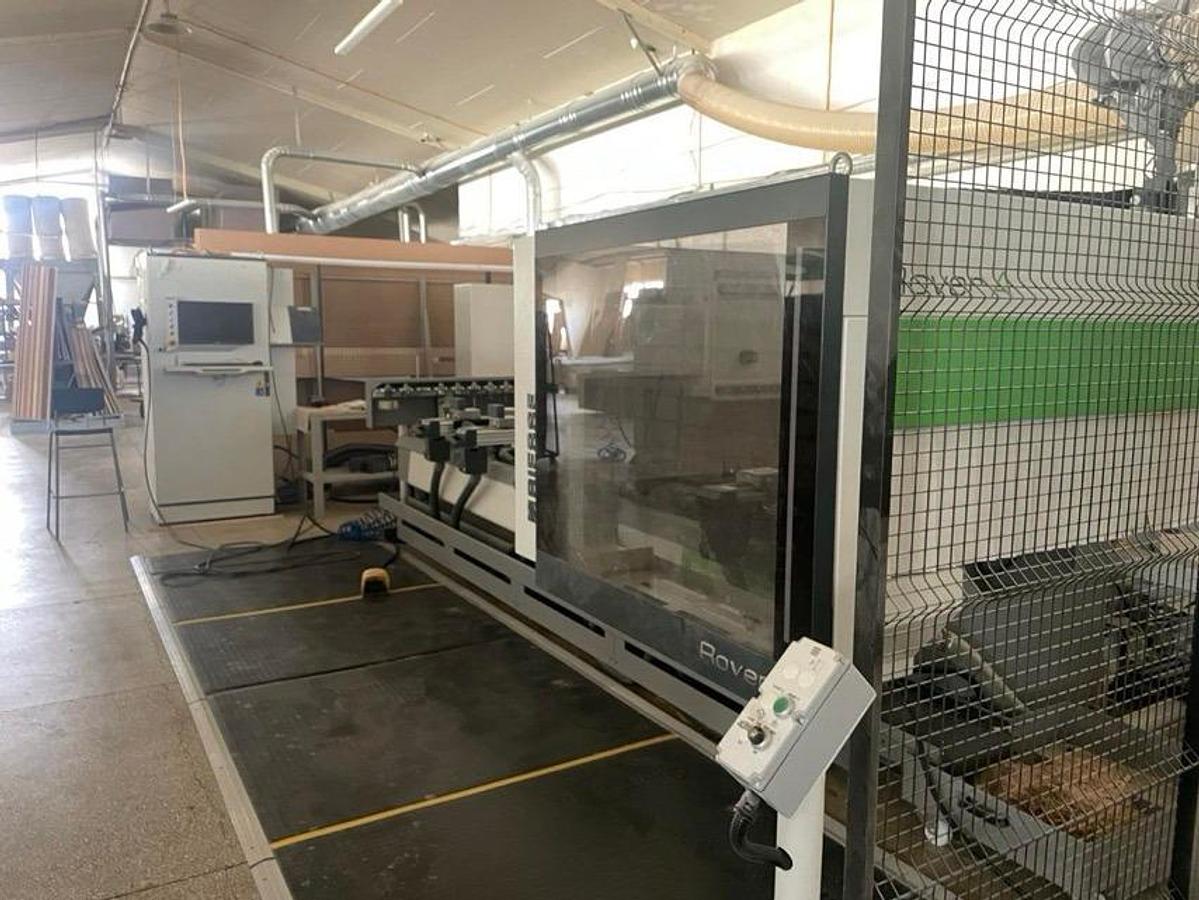

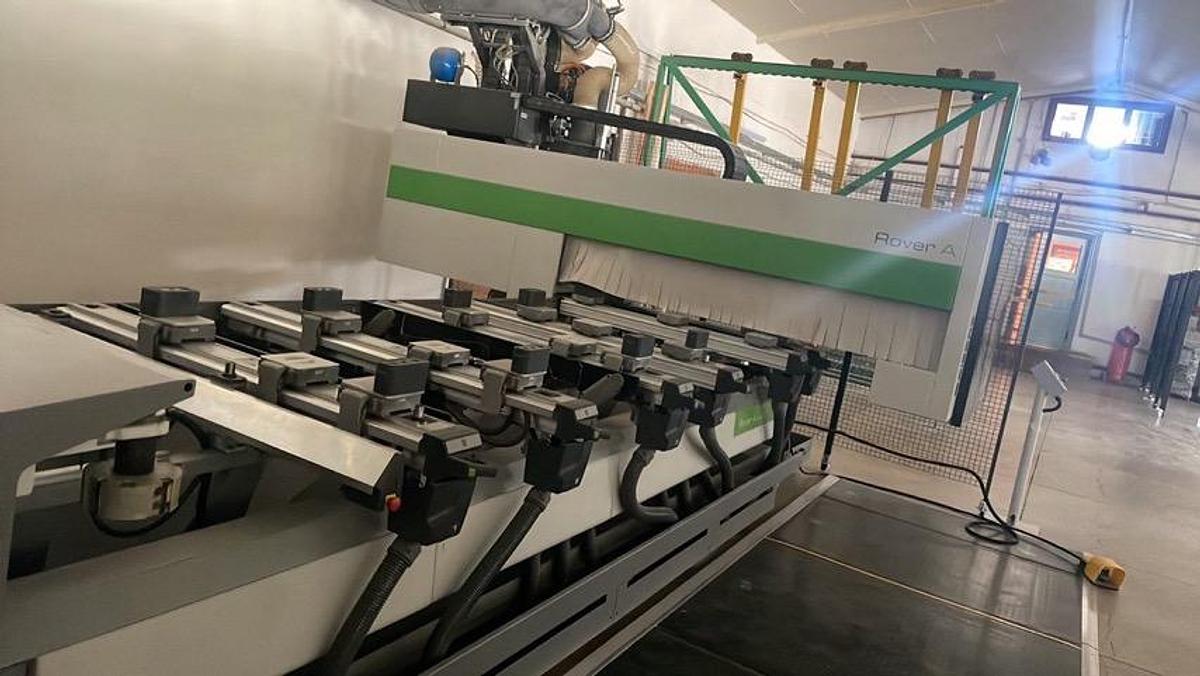

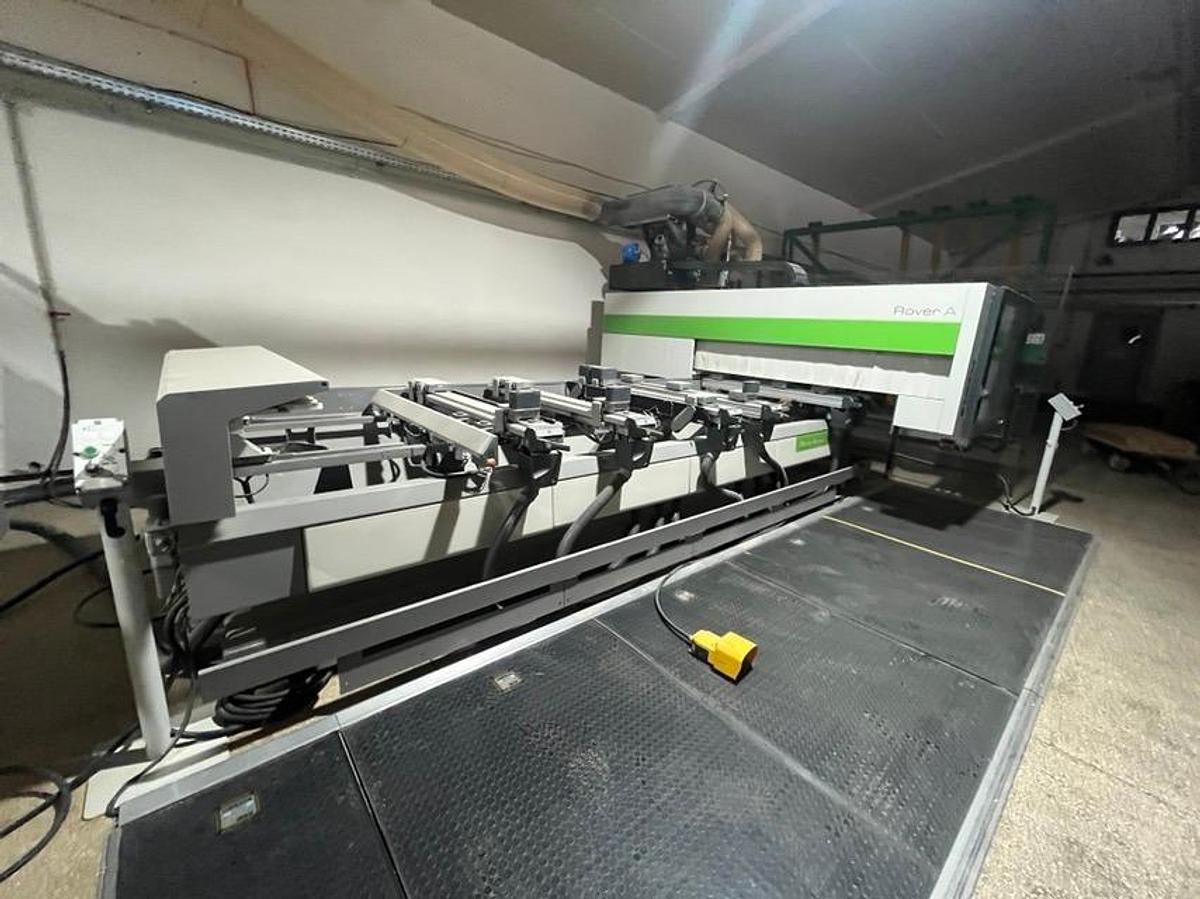

Rover A 1632 Smart
