High-cpacity fingerjoint line

High-cpacity fingerjoint line

Contact us for price

Karlholmsbruk, Sweden

orCall +46 704922341

Description

Dimensions of the blocks to be processed:

➢ Length: 114 mm to 914 mm;

➢ Width: 35 mm to 203 mm;

➢ Thickness: 8 mm to 63mm;

➢ The maximum difference (tolerance) that can be handled in the thickness and width in

the same run is up to 6 mm; Block width to be at least 50% more than thickness for

maximum performance;

➢ Hardwood and softwood

INPUT: Up to 200 pieces per minute; (with lug spacing at 228mm)

OUTPUT: Up to 10 press cycles per minute

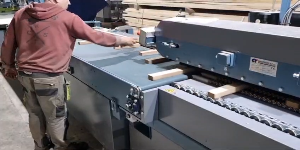

Automatic lug loader

Shaper

15kw (20HP) 3000rpm

➢ ACEco cutterheads and knives are an option. As we are ACEco distributors, please see

the options section for more information and prices;

➢ 2 – 280mm trim saws, each mounted on a high precision spindle, fixed speed 6000rpm,

saw blades included;

➢ 4 – 200mm scoring saws, each mounted on a high precision spindle, fixed speed

6000rpm, saw blades included;

➢ 2 Electric motors 7.5kw 3000rpm will drive the saws (2 scoring and 1 trim saws on each

motor) via a flat belt. Disconnect switches will be installed near each motor

Glue applicator for maximum economy

Automatic corner transfer

Assembly machine

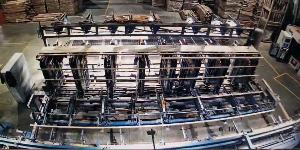

Highly productive press; – (7,5m)

Specifications

ManufacturerConception R.P. Inc
ModelCRP 2000
Year2021
ConditionUsed
Stock NumberID00098805
